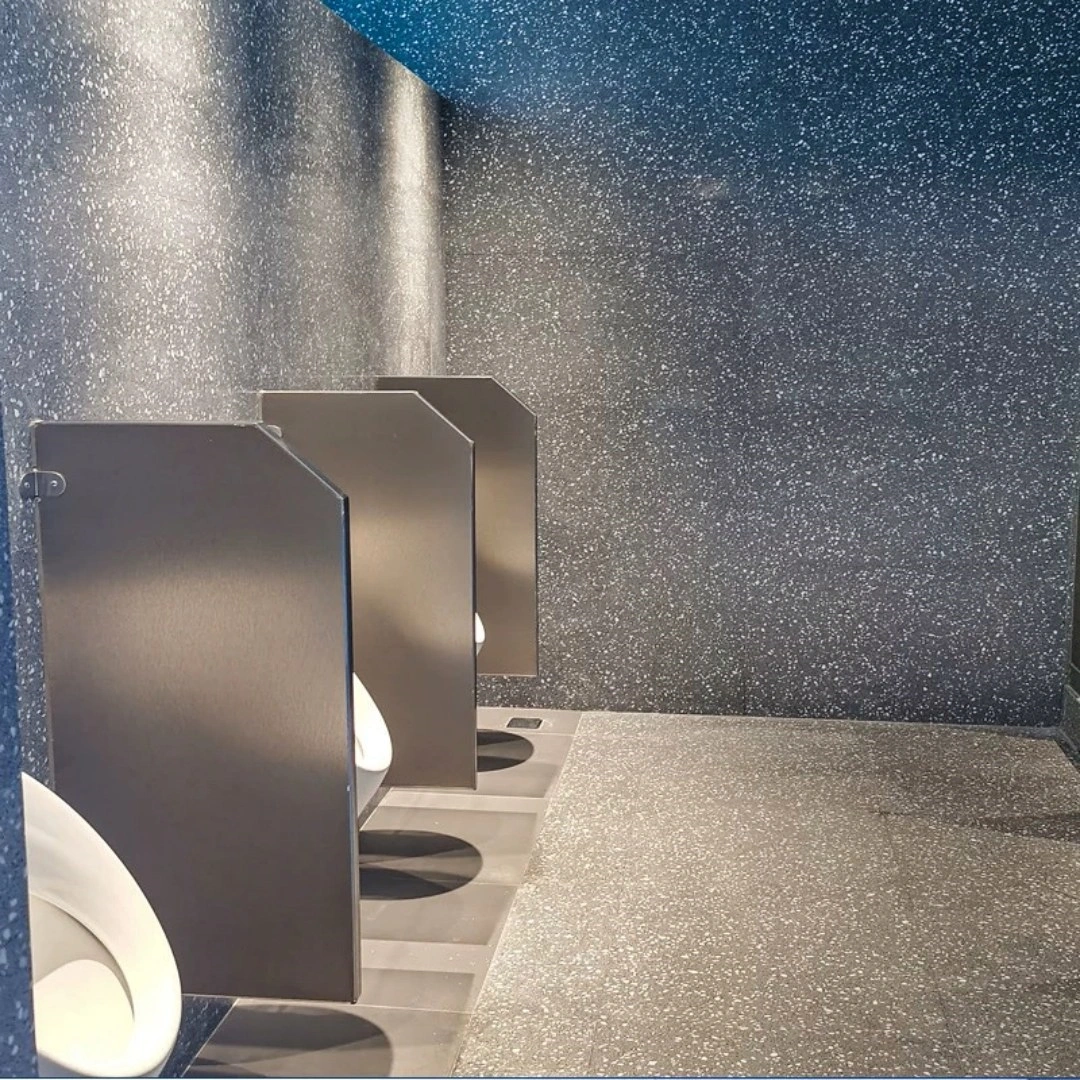

ADA-Compliant Urinal Divider Panels

Enhance restroom comfort and cleanliness with the ADA-Compliant Urinal Divider Panels for Accessibility. Engineered from premium materials, the panel delivers superior impact resistance, color stability and moisture defense. The prefabricated design speeds up installation and minimizes downtime, while customizable sizes suit both standard and bespoke layouts. Ideal for Accessibility, it meets ADA, fire‑safety and indoor air‑quality requirements. Choose from multiple finishes to complement any décor and maintain a modern aesthetic.

    Toilet Cubicles Struture

    Toilet Partitions aplication

Vital Toilet partition panel is widely used in many commerical space like office building,shopping mall ,hotal ,station becasue of it waterproof, durable, and adaptable nature.

Toilet cubicles panel material

It made of VITAL  HPL /Compact board panel，The surface layer is Wear-resistant Transparent layer as the protector for the panels, then is the Melamine and HPL color layer,if you want the panel with fire resistance,will go for the HPL paper as the color layer,and the middle core is the Phenolic resin treated or Uric acid gel resin treated Ultra-high density fiber board core which is really good in water resistance and moisture resistance.This material is very suitable for use in the bathroom stalls or shower cubicles.

    Toilet Cubicle types

    Toilet Partitions Layout types

Contact us for free Bathroom stalls project design !!

Toilet cubicle Accessories

Toilet partition Features

1.Frictional Resistance
The surface frictional resistance of this component peaks at 1400 rpm.
Alternatively, if requested, we can also supply models with a rating exceeding 6500 rpm.

2.Impact Resistance

A buffed steel sphere measuring 50 ± 0.2 mm in diameter and weighing 400 ± 0.5 g, when released freely from a 100 cm elevation onto the surface of a laminate with a thickness exceeding 20 mm, will not induce any cracking on the laminate’s surface.

3.Water resistance

Following a three-hour submersion in boiling water, the panel will neither develop blisters nor exhibit delamination.

4.Easy to clean

The surface remains compatible with regular household cleaners (non-abrasive formulas), causing no damage to its finish.

5.Durability&Safety

Normally, it endures long-term use; no harmful gases/substances are emitted—safe, eco-friendly laminate with proven durability.

4.Heat Resistance,Flame Resistance

Subj the laminate to 180℃ surface temp (via a hot water kettle) for 20 mins—no blisters form. Product with O.I. >32 delivers inherent flame resistance.

   Our Service Toilet cubicle system Order Process

Toilet Partition Packing

• ​Ultra-Durable Material​
  • Made from ​compact laminate HPL, these partitions resist scratches, impacts, moisture, and heat, ensuring long-term performance in humid restroom conditions.
  • ​Antimicrobial properties​ inhibit bacteria and mold growth, promoting a safer environment for students.
• ​Easy Maintenance​
  • Smooth, non-porous surfaces repel stains and grime. Wipe clean with mild soap and water for effortless upkeep
• ​Design & Customization​
  • Available in ​vibrant school-friendly colors​ (e.g., white, blue, green) and sizes (e.g., 900x1800mm) to match restroom aesthetics.
  • Modular installation with pre-drilled holes for quick setup
• ​Safety & Compliance​
  • CE and ISO9001 certified for quality and safety
• ​Applications​
  • Perfect for schools, hospitals, airports, and gyms. Designed for ​floor-mounted, ceiling-hung, or wall-braced installation​
